A PIN photodiode is a semiconductor device that consists of three main layers: a p-type layer, an intrinsic layer, and an n-type layer. The p-type and n-type layers contain an excess of positive and negative charge carriers, respectively, while the intrinsic layer is lightly doped and acts as a depletion region. This arrangement forms a p-n junction between the p-type and intrinsic layers.

pin photodiode real

Principles of Operation When light falls on a PIN photodiode, photons with sufficient energy can excite electrons in the intrinsic layer, creating electron-hole pairs. The electric field created by the p-n junction within the diode separates these charge carriers, causing electrons to move towards the n-type region and holes to move towards the p-type region. This separation of charges results in a current flow, which can be detected and measured.

Key Characteristics of PIN Photodiodes

  1. Sensitivity: PIN photodiodes offer high sensitivity, allowing them to detect low levels of light and weak optical signals.
  2. Quantum Efficiency: Quantum efficiency refers to the ability of a photodiode to convert photons into charge carriers. PIN photodiodes typically exhibit high quantum efficiency.
  3. Response Time: PIN photodiodes have fast response times, enabling them to detect high-frequency optical signals.
  4. Dark Current: Dark current refers to the current flowing through the photodiode in the absence of light. PIN photodiodes typically exhibit low dark currents, which contributes to their high signal-to-noise ratio.
  5. Bandwidth: PIN photodiodes can operate at high frequencies, making them suitable for applications that require rapid signal detection and analysis.

Applications of PIN Photodiodes PIN photodiodes find applications in various fields, including:

  • Optical communication systems: PIN photodiodes are used in fiber optic networks to convert optical signals into electrical signals for transmission and detection.
  • Sensing and imaging: PIN photodiodes are employed in optical sensors and cameras for detecting and capturing light in scientific, industrial, and consumer applications.
  • Medical devices: PIN photodiodes play a crucial role in medical imaging devices such as computed tomography (CT) scanners, positron emission tomography (PET) scanners, and pulse oximeters.
  • Aerospace and defense: PIN photodiodes are used in laser rangefinders, missile guidance systems, night vision devices, and other aerospace and defense applications.

Structure of a PIN Photodiode

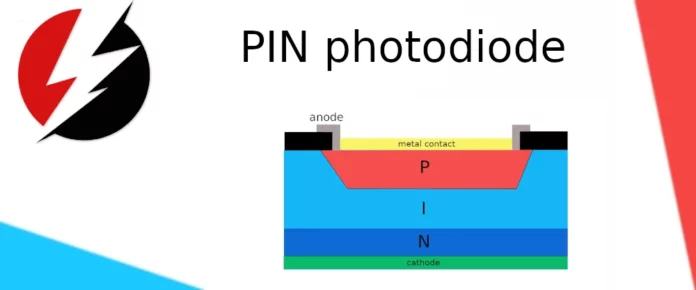

pin photodiode structure

A PIN photodiode consists of three primary layers: the p-type layer, the intrinsic layer, and the n-type layer. Let’s take a closer look at each layer:

  1. P-Type Layer The p-type layer is the first layer of a PIN photodiode. It is heavily doped with a p-type semiconductor material, such as boron or aluminum. This layer is characterized by an excess of positive charge carriers, known as “holes.” The p-type layer acts as the anode (+) terminal of the photodiode.
  2. Intrinsic Layer The intrinsic layer is the middle layer of the PIN photodiode. It is undoped or lightly doped, resulting in a low concentration of charge carriers. This layer is responsible for absorbing incident photons and generating electron-hole pairs. The intrinsic layer plays a critical role in achieving high sensitivity in the photodiode. It acts as the depletion region, which separates the p-type and n-type layers, forming the p-n junction.
  3. N-Type Layer The n-type layer is the final layer of the PIN photodiode. It is heavily doped with an n-type semiconductor material, such as phosphorus or arsenic. This layer contains an excess of negative charge carriers, known as electrons. The n-type layer acts as the cathode (-) terminal of the photodiode.

Functioning of a PIN Photodiode

The functioning of a PIN photodiode relies on the interaction of light with its structure. When photons of sufficient energy strike the intrinsic layer, they are absorbed, causing the generation of electron-hole pairs. The electric field created by the p-n junction facilitates the separation of these charge carriers.

The absorbed photons transfer their energy to valence electrons in the intrinsic layer, promoting them to the conduction band and creating free electrons and holes. The electric field within the photodiode then sweeps the electrons toward the n-type region and the holes toward the p-type region.

This separation of charge carriers results in a measurable photocurrent flowing through the PIN photodiode. By connecting the anode and cathode terminals to an external circuit, the photocurrent can be utilized for various applications, such as signal detection, communication, or light sensing.

Exploring the Working Mechanism of PIN Photodiode

Step 1: Absorption of Photons The working mechanism of a PIN photodiode begins with the absorption of photons. When incident light strikes the photodiode, photons with sufficient energy are absorbed by the intrinsic layer of the device. The intrinsic layer, which is typically made of a lightly doped or undoped semiconductor material, acts as the active region for light absorption.

Step 2: Generation of Electron-Hole Pairs Upon absorption of photons, the energy from the photons is transferred to valence electrons in the intrinsic layer. This energy excites the electrons, allowing them to break free from their bound state in the valence band and move to the conduction band. This process creates electron-hole pairs, where the excited electron is in the conduction band, and the missing electron (hole) remains in the valence band.

Step 3: Separation of Charge Carriers The p-n junction present in the PIN photodiode plays a critical role in separating the generated electron-hole pairs. The p-n junction forms a built-in electric field that causes the electrons to move toward the n-type region and the holes to move toward the p-type region. This separation of charge carriers is a result of the drift caused by the electric field, leading to a spatial separation of the electrons and holes.

Step 4: Current Flow The separated electrons and holes give rise to a photocurrent in the PIN photodiode. The electrons, being negatively charged, flow toward the n-type region and contribute to the flow of current in the external circuit connected to the photodiode. Similarly, the holes, being positively charged, flow toward the p-type region and contribute to the current flow as well.

Step 5: External Circuitry To make use of the photocurrent, the anode (+) terminal of the PIN photodiode is connected to the positive terminal of an external circuit, and the cathode (-) terminal is connected to the negative terminal. This allows the photocurrent generated by the photodiode to be directed and utilized in various applications, such as signal detection, data transmission, or light sensing.

The working mechanism of PIN photodiodes relies on the absorption of photons, generation of electron-hole pairs, separation of charge carriers, and the resulting photocurrent flow. By understanding the key steps involved in the operation of PIN photodiodes, engineers and researchers can optimize their performance for specific applications. PIN photodiodes find extensive use in fields such as optical communication, sensing, imaging, and scientific instrumentation, where their ability to convert light into electrical signals plays a crucial role in data acquisition and analysis.

Advantages and Limitations of PIN Photodiodes in Optical Sensing

PIN photodiodes are widely used in optical sensing applications due to their unique characteristics and performance capabilities. Understanding the advantages and limitations of PIN photodiodes is essential for selecting the appropriate photodetector for optical sensing systems.

Advantages of PIN Photodiodes in Optical Sensing

  1. High Sensitivity: PIN photodiodes offer high sensitivity, allowing them to detect even low levels of light or weak optical signals. This makes them suitable for applications where detecting and measuring faint light is critical.
  2. Low Noise: PIN photodiodes exhibit low noise levels, resulting in a high signal-to-noise ratio. This characteristic is particularly advantageous in applications that require accurate detection and measurement of optical signals, as it improves the overall system performance.
  3. Wide Spectral Range: PIN photodiodes can be designed to operate across a wide spectral range, covering ultraviolet (UV), visible, and infrared (IR) wavelengths. This flexibility allows them to be utilized in various optical sensing applications that require detection in different parts of the electromagnetic spectrum.
  4. Fast Response Time: PIN photodiodes have rapid response times, enabling them to detect high-frequency optical signals. This feature is crucial in applications such as optical communication or high-speed data transmission, where the ability to capture fast-changing optical signals is essential.
  5. Low Dark Current: PIN photodiodes typically exhibit low dark currents, which are the currents flowing through the photodiode in the absence of light. Low dark current levels enhance the photodiode’s sensitivity and improve the signal-to-noise ratio, especially when operating in low-light conditions.

Limitations of PIN Photodiodes in Optical Sensing

  1. Limited Gain: Unlike photomultiplier tubes (PMTs) or avalanche photodiodes (APDs), PIN photodiodes do not provide internal gain. This limits their ability to amplify weak optical signals. Additional signal conditioning circuitry may be required to amplify the detected signals when working with low-light levels.
  2. Temperature Sensitivity: PIN photodiodes are sensitive to temperature variations, which can affect their performance. Changes in temperature can lead to fluctuations in the dark current and introduce noise into the system. Proper thermal management and temperature compensation techniques are necessary to mitigate these effects.
  3. Optical Crosstalk: PIN photodiodes can experience optical crosstalk, where light from one optical source leaks into neighboring photodiodes. This can occur in densely packed arrays or integrated circuits and may impact the accuracy and reliability of optical sensing systems. Shielding and isolation techniques can be employed to minimize optical crosstalk.
  4. Limited Dynamic Range: The dynamic range of a PIN photodiode defines the range of light intensities it can accurately detect. PIN photodiodes have a limited dynamic range compared to specialized detectors like APDs or PMTs. In applications requiring a wide range of light intensity measurements, careful calibration and use of appropriate amplification techniques may be necessary.
pin photodiode optical crosstalk

PIN photodiodes offer several advantages in optical sensing, including high sensitivity, low noise, wide spectral range, fast response time, and low dark current. However, they also have limitations related to gain, temperature sensitivity, optical crosstalk, and dynamic range. Understanding these advantages and limitations is crucial for selecting and optimizing PIN photodiodes in optical sensing applications. By carefully considering these factors and employing appropriate techniques, engineers can harness the strengths of PIN photodiodes while mitigating their limitations, ultimately achieving accurate and reliable optical sensing systems.

Applications of PIN Photodiodes in Modern Technologies

PIN photodiodes have found widespread applications in various modern technologies due to their unique capabilities in detecting and converting light into electrical signals. This article explores the diverse range of applications where PIN photodiodes play a crucial role, enabling advancements in fields such as telecommunications, sensing, imaging, and scientific research.

  1. Optical Communication Systems PIN photodiodes are widely used in optical communication systems, such as fiber optic networks. They serve as photodetectors, converting optical signals into electrical signals for transmission and detection. Their high sensitivity, low noise, and fast response time make them ideal for high-speed data transmission, enabling the efficient and reliable transfer of information over long distances.
  2. Remote Sensing and LiDAR PIN photodiodes are employed in remote sensing applications, such as LiDAR (Light Detection and Ranging). LiDAR systems use laser pulses to measure distances and create detailed 3D maps of objects or environments. PIN photodiodes act as light receivers, detecting the reflected laser pulses and providing accurate distance measurements. They enable precise mapping, environmental monitoring, and applications in autonomous vehicles, robotics, and aerospace.
  3. Optical Sensing and Imaging PIN photodiodes play a crucial role in optical sensing and imaging applications. They are utilized in various sensor technologies, such as light level meters, ambient light sensors, and flame detectors. PIN photodiodes enable the accurate measurement of light levels in different environments, contributing to energy-efficient lighting systems and automated brightness control in displays.

In imaging applications, PIN photodiodes are employed in digital cameras, scientific cameras, and surveillance systems. They capture and convert incident light into electrical signals, allowing the formation of digital images or video recordings. The high sensitivity and low noise characteristics of PIN photodiodes contribute to high-quality imaging, even in low-light conditions.

  1. Medical Devices PIN photodiodes find application in various medical devices and equipment. They are utilized in pulse oximeters, which measure oxygen saturation levels in the blood. PIN photodiodes enable the detection of light transmitted through the patient’s tissues, providing accurate readings for vital signs monitoring.

In medical imaging, PIN photodiodes play a crucial role in devices such as computed tomography (CT) scanners and positron emission tomography (PET) scanners. They detect the gamma rays emitted during the imaging process, contributing to detailed and precise diagnostic imaging for medical professionals.

  1. Industrial and Scientific Research In industrial applications, PIN photodiodes are employed for quality control, non-destructive testing, and material inspection. They enable the detection of light emitted by lasers or other light sources, assisting in precise measurements and analysis.

In scientific research, PIN photodiodes are utilized in spectroscopy, where they measure the intensity of light across different wavelengths. They contribute to the analysis of materials, chemical compositions, and the study of light-matter interactions.

Noise Reduction Strategies for PIN Photodiodes in Low-Light Conditions

PIN photodiodes are widely used in applications where detecting and measuring low levels of light is critical. However, in low-light conditions, various sources of noise can degrade the signal-to-noise ratio, affecting the overall performance of PIN photodiodes.

  1. Dark Current Reduction Dark current refers to the current flowing through a photodiode in the absence of light. It can contribute to the noise in low-light conditions and reduce the photodiode’s sensitivity. To reduce dark current, operating the PIN photodiode at lower temperatures can be effective. Cooling the photodiode using thermoelectric coolers or temperature-controlled environments can significantly reduce dark current and improve signal quality.
  2. Shielding and Grounding Electromagnetic interference (EMI) and radio frequency interference (RFI) can introduce noise into the photodiode circuit, impacting its performance. Shielding the PIN photodiode and its associated circuitry with appropriate materials, such as metal enclosures or conductive coatings, can minimize the effects of external electromagnetic noise. Proper grounding techniques should also be employed to reduce noise induced by ground loops and ensure a clean signal.
  3. Filtering and Signal Conditioning Implementing filtering techniques can help reduce noise and enhance the signal quality of PIN photodiodes. Low-pass filters can be used to suppress high-frequency noise that may be present in the signal. Additionally, signal conditioning circuits such as amplifiers and operational amplifiers can be employed to amplify the weak photocurrent and improve the signal-to-noise ratio. Careful consideration should be given to the selection and design of these components to ensure optimal noise reduction without introducing additional noise sources.
  4. Time Averaging and Signal Integration In low-light conditions, the photocurrent generated by the PIN photodiode can be very weak, making it susceptible to noise. Employing time-averaging techniques can help improve the signal-to-noise ratio by integrating multiple measurements over time. By averaging multiple readings, the noise components tend to cancel out while the desired signal is preserved. This approach can be particularly useful when dealing with random noise sources.
  5. Photon Counting and Lock-in Amplification In extremely low-light conditions, where individual photons are detected, photon counting techniques can be employed to achieve high sensitivity. This approach involves the use of specialized electronics to detect and count individual photons, reducing noise sources associated with analog amplification. Lock-in amplification, which involves modulating the light source and synchronously detecting the signal, can also enhance the signal-to-noise ratio in low-light conditions.

Reducing noise is crucial for optimizing the sensitivity and accuracy of PIN photodiodes in low-light conditions. By implementing noise reduction strategies such as dark current reduction, shielding and grounding, filtering and signal conditioning, time averaging, and specialized techniques like photon counting or lock-in amplification, the performance of PIN photodiodes can be significantly improved. These strategies enable reliable detection and measurement of weak light signals, making PIN photodiodes suitable for a wide range of applications, including scientific research, imaging, telecommunications, and low-light sensing environments.

Future Trends and Developments in PIN Photodiode Technology

Enhanced Sensitivity and Efficiency

One key area of development is focused on improving the sensitivity and efficiency of PIN photodiodes. Researchers are exploring novel materials and device architectures that can enhance light absorption and charge carrier collection efficiency. For instance, the integration of nanostructures or quantum dots into the PIN photodiode structure can enhance light absorption in specific wavelength ranges, leading to increased sensitivity. Additionally, advancements in thin-film deposition techniques and surface passivation methods can minimize optical losses and improve the overall efficiency of PIN photodiodes.

Broadband and Multispectral

Detection Future PIN photodiodes are expected to offer improved spectral sensitivity and enable broadband or multispectral detection capabilities. By engineering the bandgap of the intrinsic layer or utilizing advanced materials, PIN photodiodes can be designed to operate across a wider range of wavelengths, spanning from ultraviolet (UV) to infrared (IR) regions. This will enable applications that require simultaneous detection of multiple wavelengths or the ability to adapt to different optical sources.

Miniaturization and Integration

Continued advancements in microfabrication and packaging technologies will enable the miniaturization and integration of PIN photodiodes into smaller and more compact devices. This trend is particularly significant for portable and wearable applications, where size, weight, and power consumption are critical factors. Integrated photodiode arrays and system-on-chip (SoC) solutions are likely to become more prevalent, allowing for the integration of additional functionalities and simplifying the overall system design.

Low-Noise Readout Electronics

The development of low-noise readout electronics will play a crucial role in optimizing the performance of PIN photodiodes. Advanced signal processing techniques, such as low-noise amplifiers and high-resolution analog-to-digital converters, will enable more accurate detection and measurement of weak optical signals. Furthermore, the integration of on-chip signal processing algorithms and digital calibration techniques can enhance the signal-to-noise ratio and compensate for non-idealities in the photodiode’s response.

Integration with Emerging Technologies

PIN photodiodes are expected to play a pivotal role in emerging technologies, such as internet of things (IoT), autonomous vehicles, and augmented/virtual reality (AR/VR). The ability of PIN photodiodes to convert light into electrical signals will enable data acquisition, environmental sensing, and gesture recognition in these applications. Integration with other sensing modalities, such as temperature or pressure sensors, will enable the development of advanced multi-modal sensing systems.

The future of PIN photodiode technology is promising, with advancements focused on enhanced sensitivity, efficiency, broadband detection, miniaturization, low-noise readout electronics, and integration with emerging technologies. These developments will unlock new opportunities and applications across various industries, including telecommunications, sensing, imaging, healthcare, and consumer electronics. As researchers and engineers continue to push the boundaries of PIN photodiode technology, we can expect even more sophisticated and high-performing devices that will shape the future of light detection and optical sensing.
