Strata Enabled Automotive LED Taillights Solution

Category articles

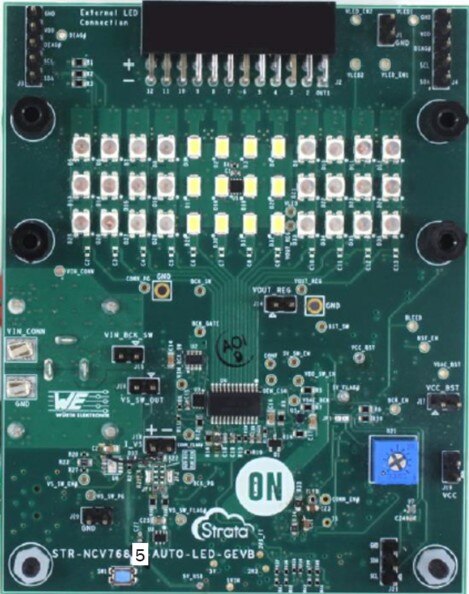

Today, the global automotive industry sees The advantage and value of utilizing LED lighting for most automotive lighting programs. LED attributes for example energy efficiency, durability, reduced radiated warmth, durability, and higher lumen density create LED a persuasive technology. The Strata allowed automotive LED taillights evaluation kit out of ON Semiconductor offers an easy-to-use platform within the Strata Development Studio to assist evaluate the LED system within this crucial automotive application.

Dependent on the NCV7685, 12 stations 60 mA LED linear current driver that’s I2C controllable, the new test kit provides features like 12 independently controlled pulse width modulation (PWM) stations, varying PWM frequency, and present setpoint via a single resistor, and LED diagnostics. This option highlights other important elements from ON Semiconductor such as CAT5171 digital potentiometer, FPF2193 load change, NCV47822 double high side change, FPF2700 flexible current-limit loading switch, NCV8853 dollar control, NCV5173 increase regulator, NCT375 temperature sensor plus NCS214R current sense amplifier.

Let us have a walkthrough of this Strata empowered automotive LED taillights evaluation kit. To get started, download and then download Strata Developer Studio. Then plug into the mini USB cable supplied with the kit from the board into the PC running Strata. Once joined, the plank will be automatically found and the management user interface (UI) will be instantly available by clicking “open system controls” button. The navigation tabs at the management UI are simple to use and designed for a complete test experience.

The first tab in the left will be”car demo Style”. Once selected, it is automatically enabled to emulate taillights and headlights of a normal vehicle. The default configuration shows the automobile hazard lights using both the left and right blinkers flashing 80 times per minute. The brake, reverse, blinker and running lights can be configured using the clickable controls on the ideal side of their consumer interface. The dangers have to be disabled to utilize the left and right blinker controls.

The”LED controller” tab Offers full control Across the 12 LED channels with direct control of the LED driver’s I2C registers, PWN using an easy to use and intuitive UI.

The”power” tab controls the input signal energy Supply as well as readings of various current, voltage, and temperature telemetry within the test board. The default power supply configuration utilizes a flexible output boost converter in the USB VBUS and can be limited to about 2W for LED power. An external power supply can be attached via the sausage or the barrel connector for higher power operation. The LED chain voltage is provided from the in-built increase or money power supplies or straight from the external banana/barrel connectors.

The”SAM (stand-alone mode), OTP (one-time Application ) and CRC (cyclic redundancy check)” tab offers access into the SAM and OTP registers using the NCV7685 without the necessity for a microcontroller to configure the LED driver via I2C communication. The I2C address and CRC can also be set into non-default values.

Complete collateral for your platform such as, schematics, layouts, block diagrams, user manuals, test reports, datasheets, etc. can be found, as well inside Strata Developer Studio beneath the”files” tab.

The Strata enabled automotive LED taillights evaluation kit Provides a thorough evaluation experience to test, step, and Control various important design parameters at LED car lighting in Order to assist design engineers determine whether that solution is compatible And a great match due to their automotive lighting program. The automotive LED taillights alternative Is important in the following: dashboard, rear combination lamps (RCL), daytime running lights (DRL), fog lights, center high mounted Stop lamps (CHMSL) arrays, turn signal along with additional externally modulated applications.
