Smart Home Sensing via Wi-Fi

Category articles

Wi-Fi is one of one of the most common cordless interactions technologies being used today. It’s easy to make use of, very easy to mount as well as economical. Its performance continues to boost year-after-year. Families in the US carry average of 11 linked gadgets in 2020, most of them using Wi-Fi technology. With technology advancing, Wi-Fi is not just an interaction technology that gives connectivity and network services, however additionally a noticing technology that allows security, security as well as family members care solutions in smart home and IoT applications. Wi-Fi sensing modern technology sustains a range of functions and also applications such as movement detection, human activity discovery and acknowledgment and crucial indicators detection.

Because Wi-Fi is widely released in domestic houses as well as structures, Wi-Fi noticing is an innately cost-effective noticing innovation. The nexus of signals amongst existing Wi-Fi routers, mesh nodes and customer gadgets create a whole-home-coverage Wi-Fi noticing network for applications like activity detection and also human task detection. No additional sensors or portals are required to develop a specialized and also different noticing network.

Different from camera or infrared (IR) based noticing as well as monitoring services, Wi-Fi picking up has several advantages. It can operate in NLOS (non-line-of-sight) problems as well as supports bigger coverage with both longer array and vast angles. In addition, it safeguards the customer’s personal privacy and also can be mounted secretive areas such as bedrooms and also shower rooms.

Wi-Fi noticing accumulates information from the normal packages and signals used for data interaction between the tools. It neither requires extra or customized signals nor weakens network performance or customer experience.

Wi-Fi works in 2.4 GHz, 6GHz, 60ghz and 5ghz bands. The wavelengths of the Wi-Fi signal in these three bands span from 4.2 cm (6GHz band) to 12.4 centimeters (2.4 GHz band). Such signals are well fit for movement discovery, task detection as well as acknowledgment for bodies along with breathing price and also heart beat discovery with an extra innovative antenna, DSP (digital signal handling), artificial intelligence algorithms and also strategies.

In the past, RSSI (Receive Signal Stamina Indication) was used for Wi-Fi picking up. RSSI is the relative gotten signal strength in a cordless environment, in approximate units. It is typically determined per packet. In MIMO system, several suppliers just gauge the RSSI of the strongest antenna. ON Semiconductor’s QCS-AX/ QSC-AX2 items gauge RSSI worths for each and every antenna. RSSI is a low-resolution feature and a coarse-grained specification. It has a solitary worth per packet. Therefore, RSSI is being changed by channel state details (CSI) in Wi-Fi noticing solutions.

What is CSI?

In the QCS-AX and also QCS-AX2 remedies, CSI can be captured in a real-time approach over up to 8 antennas for up to 8 spatial streams as well as up to 160MHz networks for each packet. The adhering to matrix shows an instance of the CSI recorded on a 4×4 MIMO (multiple-output and also multiple-input) receiver for an 80MHz signal from a 1×1 SISO (single-input as well as single-output) customer.

Keep in mind: each row stands for an antenna; each column represents a subcarrier. Total 234 useable subcarriers for 80MHz bandwidth, 468 able to be used subcarriers for 160MHz.

From the above, one can easily observe that CSI is a really fine-grained and also high-resolution function. It raises the varieties to the regularity domain as well as spatial domain name. Each CSI has both amplitude and stage values, which have much details than RSSI which is just a single integer representing the signal strength per packet.

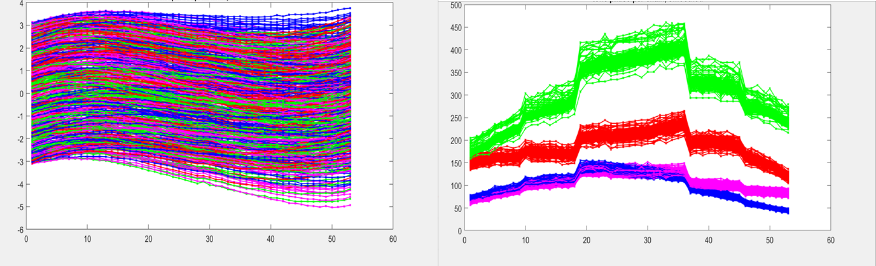

Figure 1, Example of CSI amplitude as well as stage of a package from a 20MHz client

It is important to mention also that time collection CSI info is extremely essential for all Wi-Fi sensing applications from activity detection, task discovery and also acknowledgment to essential detection, and so on. ON Semiconductor’s QCS-AX as well as QCS-AX2 Wi-Fi 6 chipsets sustain real-time CSI capture with as much as 3-millisecond intervals. Using CSI for Wi-Fi sensing can significantly boost granularity, robustness, accuracy and sensitivity.

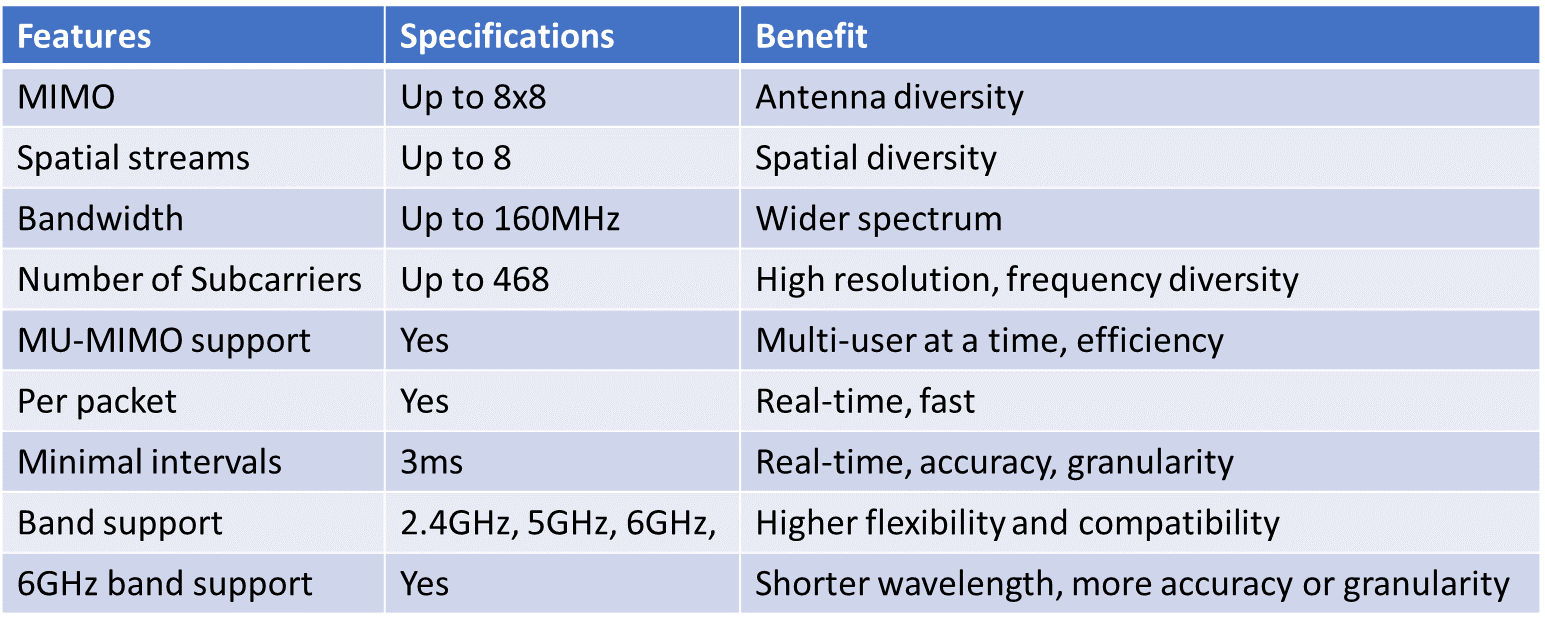

Table 1, Summary of CSI includes supported in QCS-AX as well as QCS-AX2 options

Wi-Fi motion discovery

Motion detection is one of the most useful applications using Wi-Fi sensing based on CSI. Wi-Fi-based motion detection solutions are being deployed by many tier-one home Wi-Fi gateway, mesh and router vendors in the carrier and consumer space. Different vendors may have different technologies and algorithms to recognize motion detection.

One use instance is recognized with Wi-Fi motion sensors. Much like releasing standard motion sensors, several such sensors are set up around the residence and are connected to the existing Wi-Fi network tools such as a router, mesh nodes and repeaters. The links and also signals between the sensing units and the network gadgets form the sensing network for motion discovery. The Wi-Fi movement discovery sensing units catch CSI information from the Wi-Fi signals obtained from the Wi-Fi network tools or from various other sensors if they support internal mesh among them. In this design, the CSI information processing as well as Wi-Fi movement detection formulas are normally carried out in the cloud as a result of the limited calculation power in the sensing units. As the sensing units additionally take in the airtime of the Wi-Fi network, it might influence the network performance in some circumstances.

An additional use situation is through Wi-Fi mesh nodes provided by several of the Wi-Fi motion discovery solution companies. The signals amongst the mesh nodes develop an all-natural mesh sensing network. All network devices within the mesh networks consisting of portal, router and repeaters, assistance CSI capture. CSI information handling as well as motion detection algorithms are frequently done in the cloud. In some vendors’ solutions, pre-processing of CSI data may be done locally at the edge within the mesh nodes to save bandwidth, reduce CPU utilization on the cloud side, and improve detection latency. There are multiple benefits to this version. One is that the mesh nodes record CSI information from the obtained signals utilized for typical communications in between the mesh nodes and clients, thus no added Wi-Fi airtime or data transfer is required for activity detection feature. Additionally, mesh nodes commonly sustain higher-order MIMO which profits the protection and also toughness of motion discovery. The software on each mesh node can also control both transmit and receive for CSI data capture. Hence, tailored packets or signals can be produced to create higher-resolution motion detection outcomes and also sustain high-accuracy positioning features. In this model, even more mesh nodes might be needed for whole-home noticing coverage.

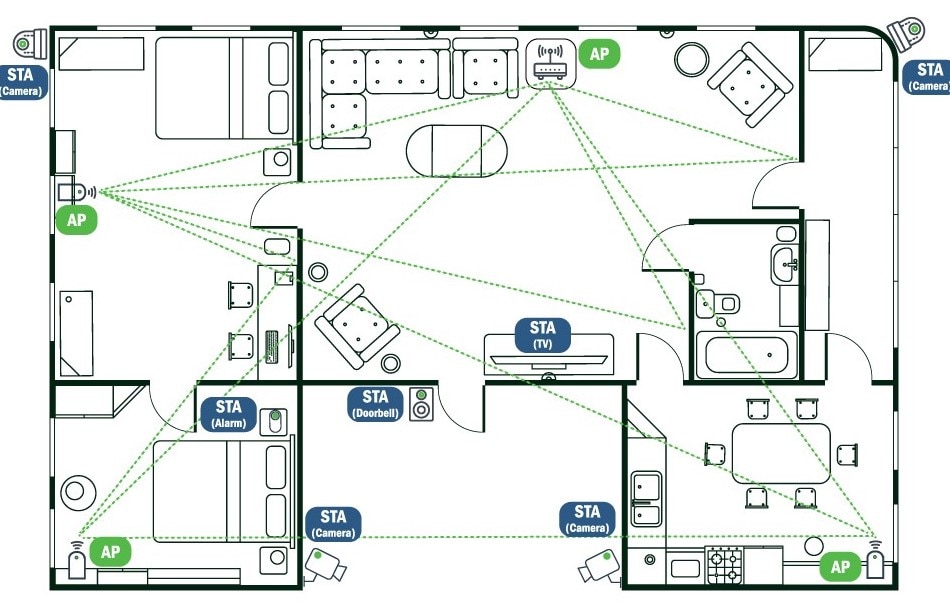

Figure 2, Motion detection use case and also release through mesh nodes (network devices).

All the advantages in the previous mesh nodes model, another considerable advantage of this model is that all the existing Wi-Fi client devices, such as Wi-Fi cameras, smart lamps and printers, etc., become motion detection sensors. Thus, the sensing network coverage is much more often able and comprehensive to provide whole-home coverage without installing additional mesh nodes or Wi-Fi devices. The other advantage of this model is that no software or hardware change is needed to enable the Wi-Fi client devices to Wi-Fi motion detection sensors.

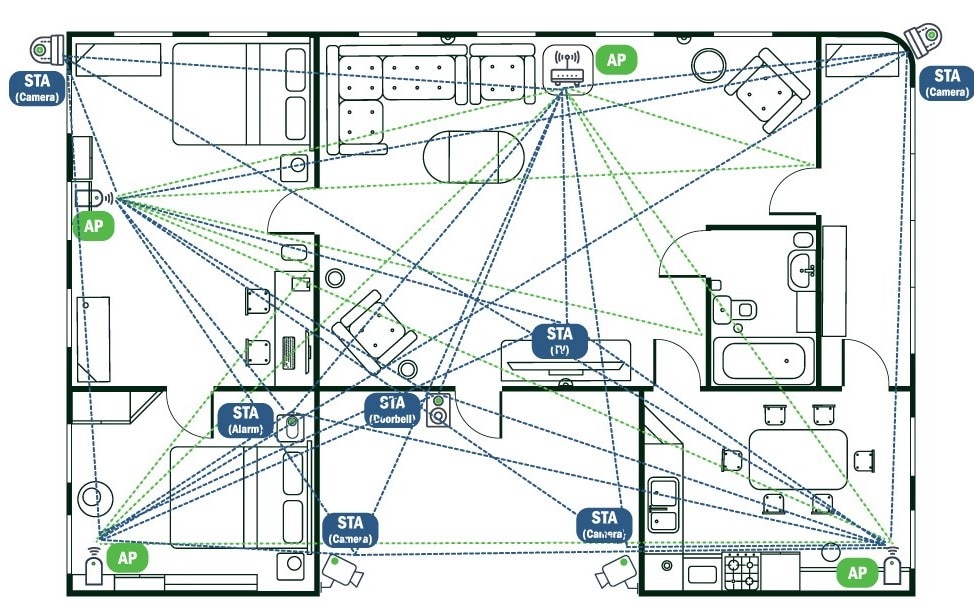

Figure 3, Movement discovery usage instance and also implementation with mesh nodes (network devices) and existing installed customer gadgets.

ON Semiconductor has been collaborating with multiple vendors that support a number of the usage situations over. The QCS-AX and also QCS-AX2 Wi-Fi 6 services sustain all the CSI capture functions called for in these versions. Read more concerning how Wi-Fi sensing jobs from our white paper. Stay tuned for our following blog concerning human activity detection and also recognition making use of a Wi-Fi-based noticing option.
