Today, sectors around the world are seeing the relevance of IoT sensing units that inform as well as notify when temperature level or unusual activities arise in the wise retail process or in self-governing manufacturing facilities. The Strata Made it possible for Multi-Sensor Board supplies numerous ON Semiconductor sensing units in one all-encompassing board for customers to assess and take a look at the different layout specifications in our easy to use Strata software environment.

The Strata Allowed Multi-Sensor Board offers a distinct experience for developing IoT applications with sensor modern technology within the Strata Programmer Workshop ™. Strata makes growth and screening simple and easy for everybody by minimizing the requirement for large laboratory devices, giving gain access to and also control to various style specifications for personalized examination, and also by having all essential layout data in one area.

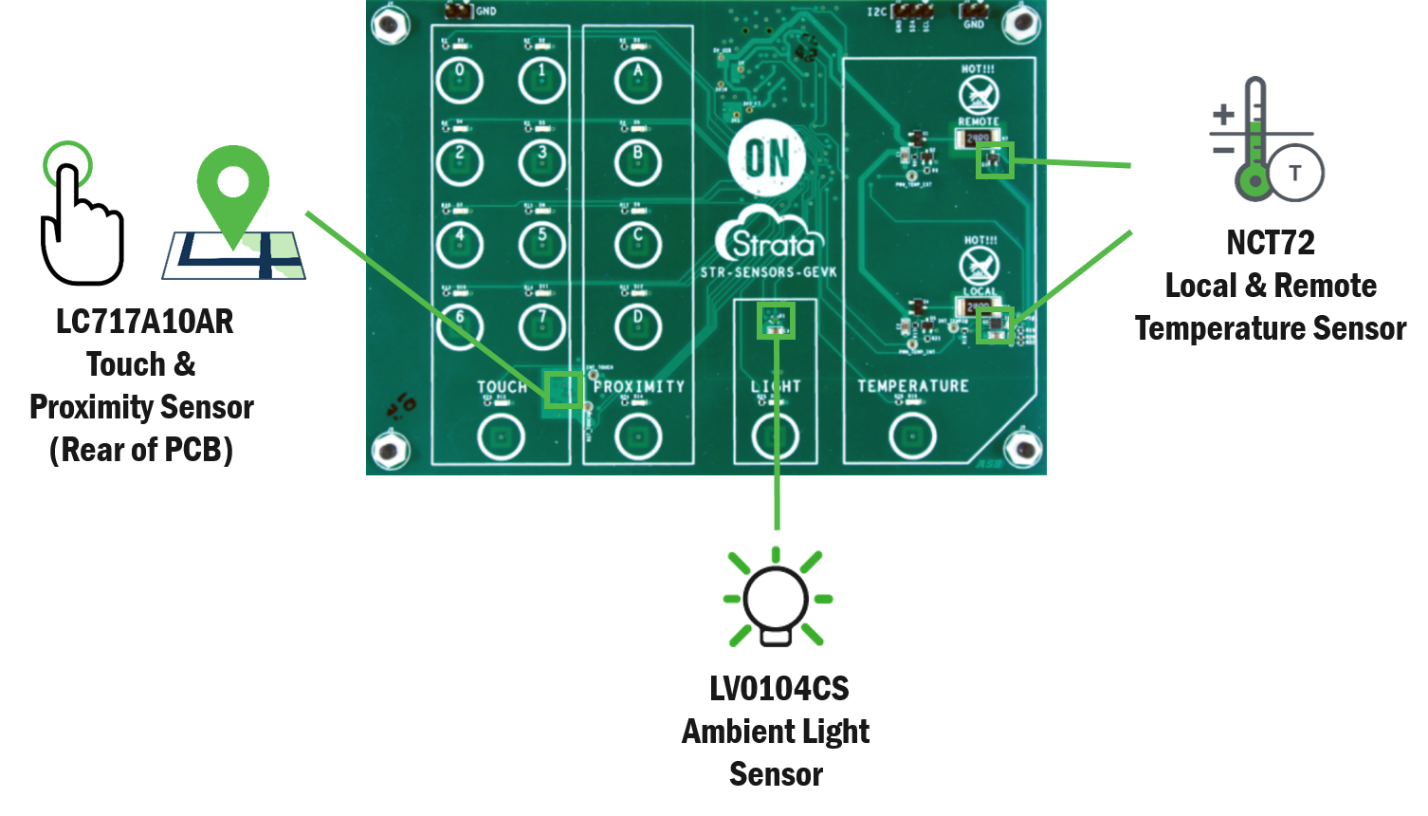

The Strata Allowed Multi-Sensor Board

The NCT72 twin temperature sensor as well as uses complete control over every electronic register arrangement. A regional temperature level sensor is inside the device and a remote sensing unit is located concerning 30 mm over the regional temperature IC making use of the PN joint of the MMBT3906W transistor. Sensors can be triggered by clicking the suitable tab inside Strata or by touching any of the 4 buttons identified with a sensor on the PCB.

Strata Designer Studio

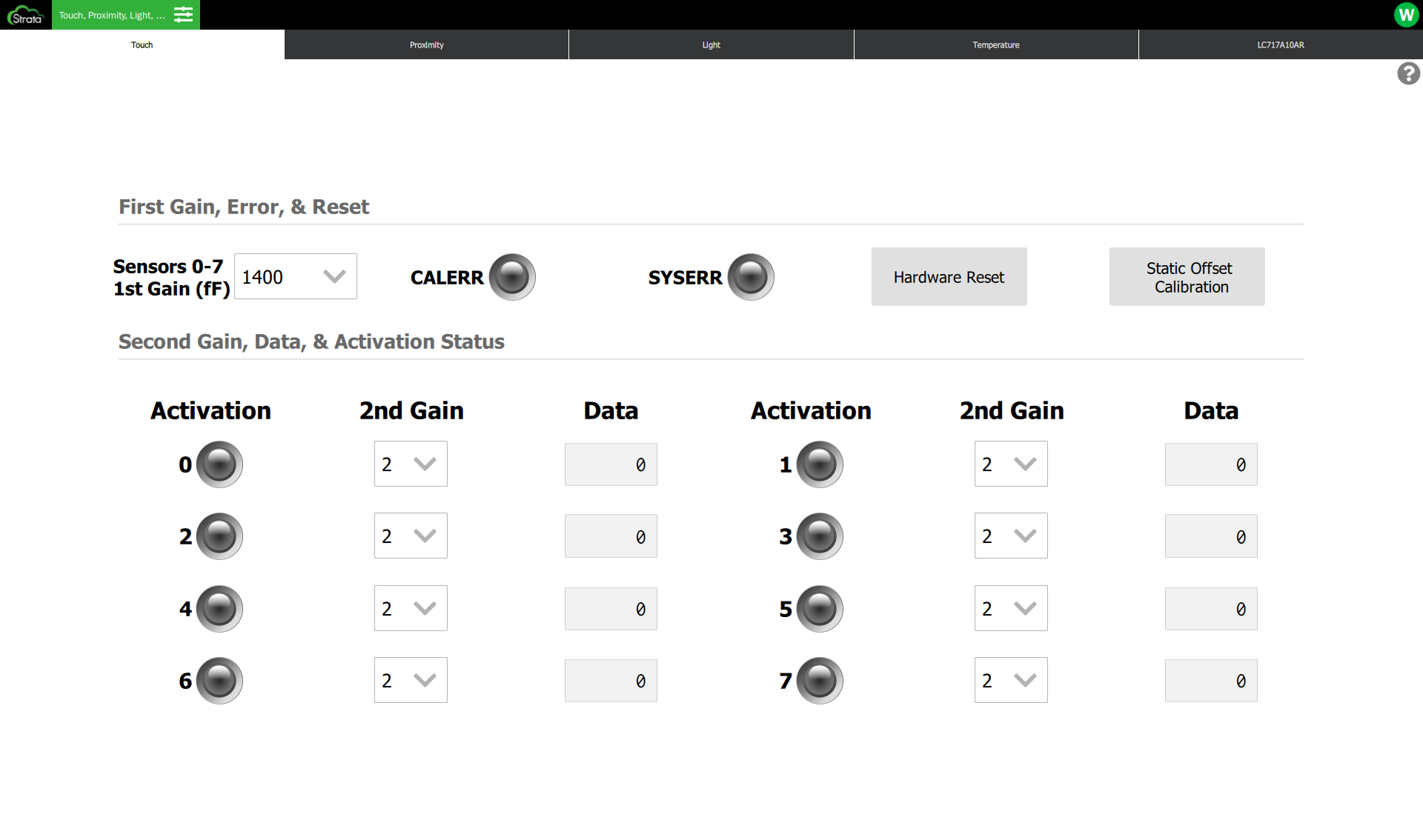

Touch control has the global first gain for sensing units CIN0 via CIN7 and the specific 2nd gain can be changed. The closeness sensor runs the same as the touch sensor however the register setup modifications to enable for a lower default threshold of activation and a greater sensing unit gain. The individual second gain as well as limit of each CIN sensor network can be readjusted to transform the sensing unit closeness limit.

The temperature level sensor PWM obligation cycle can be changed from 0 to 100% in the Neighborhood as well as remote Temperature sections of the UI. The Warnings & Info section displays the two equipment interrupt pins on the NCT72: THERM as well as ALERT/THERM2. As the maker ID read from the NCT72 on startup, I2C registers can be exported in a text data to enable individuals to configure the tool on their PCB utilizing the Strata UI as a standard. The Pin 6 radio switch will certainly toggle the capability of Pin 6 and upgrade the label of the ALERT/THERM2 control in the Warnings & Information section. The Conversion Price changes the time period between ADC conversions of the temperature level sensor, consequently changing the duration will update both the Remote and also Neighborhood Temperature determines. The Remote as well as Regional Warnings, Limitations, & Offset sections transform the limit and counter register that sets off the THERM or ALERT disrupts as well as the 3 flags for both sensors THRM, LOW, and HIGH. The LC717A10AR tab uses a total assessment of the LC717A10AR capacitive touch sensor. The LC717A10AR has full control over every electronic register setup. All 16 capacitive touch sensing units can be configured, unlike the touch and distance controls. Each UI component has an aid message to help individuals much better understand the objective of each control.
