Power over Ethernet (PoE) Solutions Address Power Demands Challenges up to 100 W

Category articles

As networks come to be larger, the demand for power enhances dramatically. Ethernet is already an essential part of the innovation ecosystem, and also the new Power over Ethernet (PoE) global requirement (IEEE 802. bt) will certainly aid enable a variety of new applications by offering power approximately 90 watts. PoE powered gadget (PD) options from ON Semiconductor not just sustain the new standard restriction of power but expand it additional to 100 W. This assists attend to the high power demand difficulty for applications including attached lighting as well as telecom, with design energy, versatility and also cost-effectiveness efficiency.

What is PoE IEEE 802.3 bt?

PoE is a networking feature defined by the IEEE 802.3 af and also 802.3 at criteria. PoE modern technology enables the transfer of power and also information over Ethernet cable televisions. The amount of power moved is managed with the connection between the power sourcing equipment (PSE) and also the PD. During this procedure, the PSE identifies the kind and class of PD devices based on the PoE criterion and afterwards ensures it obtains the appropriate and also secure quantity of power.



The mix of increasing energy expenses, needs for smaller solutions, the need to adhere to numerous criteria and restricted budget plans, has actually provided a number of difficulties for application designers.

Making use of an one-of-a-kind high-voltage manufacturing process, ON Semiconductor has created more advanced power conversion semiconductors that operate with high degrees of effectiveness as well as low levels of warmth generation in a small space.

There are many misunderstandings when it pertains to PoE. Take a look at our video below to comprehend a couple of common misconceptions connected with PoE that could be holding you back from utilizing it in your layouts!

A PD in a PoE application needs a bridge circuit to manage the polarity of the input power when the PSE providing power to the PD is furnished with an uninterruptible power supply (UPS). ON Semiconductor’s GreenBridge option has been established to resolve this problem by reducing power losses in the bridge circuit.

Completing a design based upon the FDMQ8203 GreenBridge solution simply requires the enhancement of external wiring to drive and also protect the MOSFETs. After screening, the GreenBridge solution reduced power loss, boosted effectiveness and lowered operating temperature level in a remedy that inhabits around half the PCB area of the equal diode bridge, as received Figure 1.

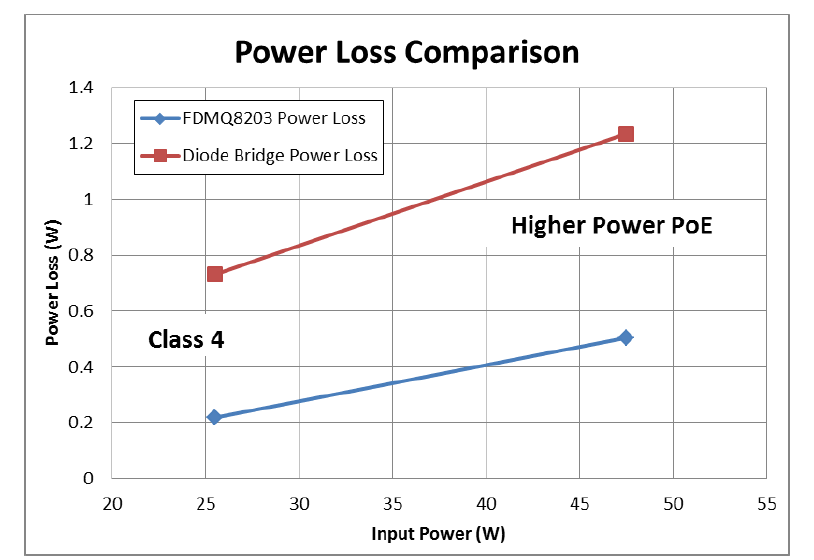

Figure 1. GreenBridge ™ 1 Remedy vs. a Traditional Diode Bridge Option.

The IEEE 802. 3bt certified FDMQ8205 containstwo N-channel and two P-channel 100 V-rated MOSFETs as well as all needed gateway vehicle drivers. The device calls for no external circuitry to drive or safeguard it, while offering the lowest RDS( on). Compared to standard diode bridge solutions, a GreenBridge solution based on FDMQ8205 offers up to 10 times much better power dissipation. The overall system size is less than 1/4 of the typical diode bridge remedies.

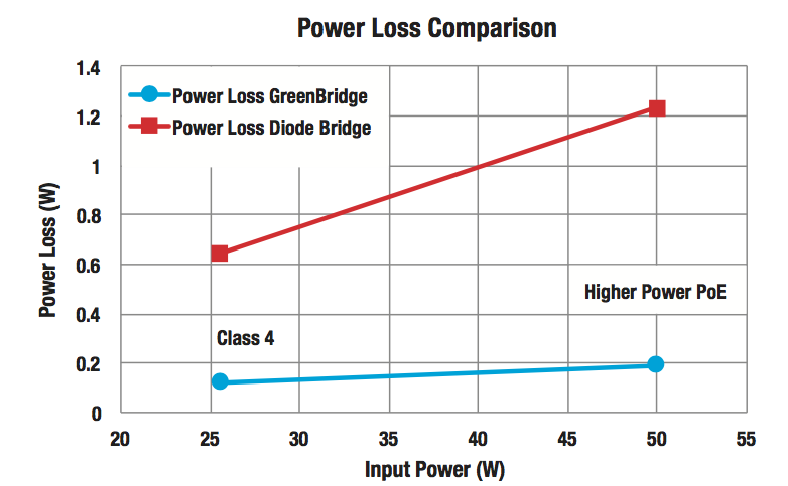

Figure 2. GreenBridge ™ 2 options vs diode bridge service.

Discover more concerning just how a Quad MOSFET technique enables much more energy-efficient PoE solutions below.

1. IEEE 802.3 bt Certified PoE-PD Interface Controllers: NCP1095, NCP1096.

The NCP1095 and NCP1096 PoE-PD interface controllers incorporate all needed functionalities for PoE systems including discovery, classification and also existing lights. These tools includes an external pass transistor and Autoclass assistance for enhanced power allotment based on PD kind as well as classification. Providing a higher degree of assimilation, the NCP1096 features an internal hot-swap FET transistor with the lowest RDS( on) available in a Kind 3 or 4 PoE controller. The NCP1095GEVB and also NCP1096GEVB examination boards enable designers to quickly assess both controllers’ procedure prior to applying a physical layout. They include the GreenBridge2 active bridge, RJ45 ports and also LAN transformer.

Figure 3. NCP1095/NCP1096 Integrated Controllers.

2. 100 V N-Channel PowerTrench ® MOSFET.

The FDMC8622 MOSFET is established using an advanced Power Trench ® process that incorporates Shielded Entrance innovation. This process has been optimized for RDS( on), switching over efficiency and also ruggedness. The FDMC8622 supports high power and also existing handling ability and is supplied in a commonly used, 100% UIL Examined surface area place package.

3. DC-DC Converter.

The NCP1566 is a highly integrated dual-mode active-clamp PWM controller targeting next-generation high-density, small and high-performance to tool power level isolated dc-dc converters for use in telecom and datacom markets. It can be set up in either voltage setting control with input voltage feed-forward or peak current mode control. Peak current setting control might be implemented with input voltage feedforward too. Flexible flexible overlap time maximizes system efficiency based upon input voltage as well as load conditions. This controller integrates all the needed control as well as defense features to implement an isolated energetic clamp forward or crooked half-bridge converter.

4. ESD Security Diode.

The ESD8004 is designed to shield high-speed data lines from ESD. Ultra-low capacitance and also low ESD securing voltage make this device an ideal service for protecting voltage sensitive high-speed data lines.

Why PoE?

Wireless links provide many considerable benefits, the power and data demands of all tools made use of in the innovation ecological community vary commonly. There are several benefits to carrying out PoE features as well as abilities, such as:.

Time as well as Price Savings − as no power cables are required, expenses as well as installment time are reduced. The setup is additionally streamlined as keys electrical wiring laws do not use as well as a qualified electrical contractor is not called for.
Adaptability − proximity to a power source is no more a consideration. Devices can be put any place LAN cables can be run.
Integrity − The central power source replaces inexpensive wall surface adapters as well as enables the system to be supported by a solitary uninterruptible power supply.
Protection – Providing a much more robust safety and safety method than cordless, it increases security versus hackers.
Reduce and also Convenience – PoE can transmit power and also data at the same time, reducing wiring harness, hassle-free and reliable.
